COMPANY PROFILE

Yantai Shuangyuan General Parts Co., Ltd (SYS) is a private enterprise established in 2007 and specialized in producing casting alloy floating seals. Located in Yaitai, Shandong province, SYS is 100 Km away from Yantai Penglai Airport and 180 Km away from Qingdao port. SYS covers a floor area of 40000 m2 and a building area of 20000 m2 with the total assets of USD 20 million. The total number of employees of SYS is more than 300, about 30 percent of which are engineering technicians.
As one of the most professional floating seals manufacturers in China, SYS takes the pursue of “high starting point, high technology, high quality, and high speed” as the developing principle, aims at the goal of “seeking the best instead of the largest”, digests and absorbs advanced foreign technologies, independently and successfully develops advanced manufacturing techniques and equipment, all of which occupy leading positions in China, and fast seizes high-end and mid-end markets at home and abroad by relying on the most competitive quality and cost advantages. SYS’s floating seals are widely applied to construction machinery, mining machinery, sand conditioning equipment, concrete and cement mixer, gear reducers etc.

COMPANY GROWTH HISTORY:

2006

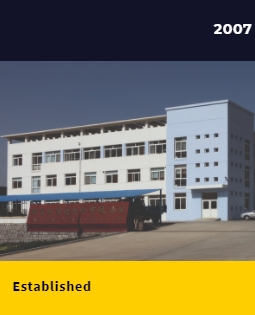

Established

Established

2007

ISO 9001:2002 Certification

ISO 9001:2002 Certification

2008

Partnership with SHANTUI and ITM

Partnership with SHANTUI and ITM

2009

Partnership with BERCO

Partnership with BERCO

2010

Partnership with BONFIGLIOLI

Partnership with BONFIGLIOLI

2012

Partnership with BOSCH

Partnership with BOSCH

2013

Partnership with PMP

Partnership with PMP

2014

Partnership with ITR

Partnership with ITR

2015

Partnership with Jisung TEC

Partnership with Jisung TEC

2016

Second plant Established – Partnership with NABTESCO

Second plant Established – Partnership with NABTESCO

2017

CEP became the OEM supplier of LIEBHERR for Floating Seal Groups

CEP became the OEM supplier of LIEBHERR for Floating Seal Groups

2018

CEP became the OEM supplier of TRELLEBORG

CEP became the OEM supplier of TRELLEBORG

2019

CEP became the OEM supplier of SANYI for Floating Seal Groups

CEP became the OEM supplier of SANYI for Floating Seal Groups

COMPANY PROFILE

Yantai Shuangyuan General Parts Co., Ltd (SYS) is a private enterprise established in 2007 and specialized in producing casting alloy floating seals. Located in Yaitai, Shandong province, SYS is 100 Km away from Yantai Penglai Airport and 180 Km away from Qingdao port. SYS covers a floor area of 40000 m2 and a building area of 20000 m2 with the total assets of USD 20 million. The total number of employees of SYS is more than 300, about 30 percent of which are engineering technicians.
As one of the most professional floating seals manufacturers in China, SYS takes the pursue of “high starting point, high technology, high quality, and high speed” as the developing principle, aims at the goal of “seeking the best instead of the largest”, digests and absorbs advanced foreign technologies, independently and successfully develops advanced manufacturing techniques and equipment, all of which occupy leading positions in China, and fast seizes high-end and mid-end markets at home and abroad by relying on the most competitive quality and cost advantages. SYS’s floating seals are widely applied to construction machinery, mining machinery, sand conditioning equipment, concrete and cement mixer, gear reducers etc.

COMPANY GROWTH HISTORY



MANUFACTURING

SYS has a perfect manufacturing system integrating casting, rough machining, heat-treating, grinding and lapping into a whole. All raw materials are subject to strict inspection, and all production processes are rigidly executed according to the technological requirements. Our major manufacturing facilities include resin-coated sand moulding lines, CNC lathes, automatic temperature control furnaces for heat treatment, precision lapping machines etc.

QUALITY CONTROL

SYS strictly executes the ISO/9001 quality management system. Six Sigma quality management idea and advanced inspection equipment realize the international first-rate product quality. SYS’ s major inspection equipment include direct reading spectrometer, digital metallurgical microscope, digital hardness tester, surface roughness measuring instruments, image measuring instruments, etc.

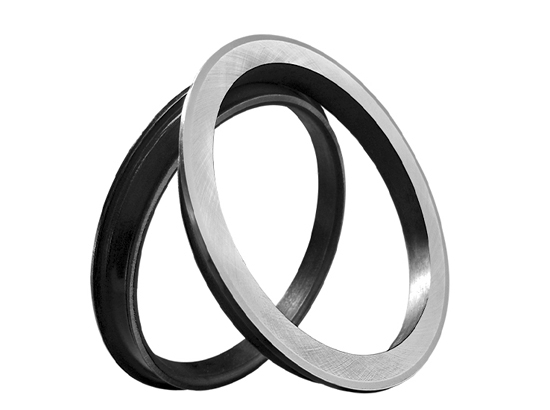

PRODUCTS



Technical Specifications
Material: FC15Cr3Mo

Element
Standard %
C 3.20-3.60
Si 1.1-1.6
Mn 0.5-1.0
P <0.20
S <0.10
Cr 14-16
Mo 2.0-4.0
Ni 1.0-2.0

Grinding Area Roughness: Ra 0.2
Lapping Area Roughness: Ra 0.07
Lapping Area Flatness: 3 um

Microstructure: Martensite and Carbides
Hardness after Heat Treatment: HRC 65-72







Operating Conditions

Temperature -45 ° C to +115 ° C
Maximum Rubbing Speed Up to 150 mpm*
Internal Operating Pressure 240 to 345 KPa*

Where continuous operation is required, speeds may be limited to 107 mpm and pressure maximum to 240 KPa.

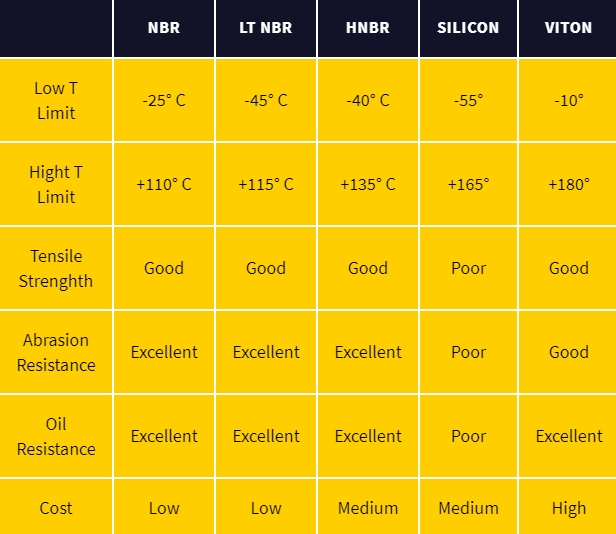

Rubber Ring Materials The right rubber ring should be chosen to meet the specific application requirements.The most common rubber ring materials are NBR and Silicone.The table listed below gives a brief comparison between available rubber rings for your reference.

NBR
LT NBR
HNBR
SilicoN
Viton
Low T Limit -25° C -45° C -40° C -55° -10°
Hight T Limit +110° C +115° C +135° C +165° +180°
Tensile Strenghth Good Good Good Poor Good
Abrasion Resistance Excellent Excellent Excellent Poor Good
Oil Resistance Excellent Excellent Excellent Poor Excellent
Cost Low Low Medium Medium High



PRODUCTS



Technical Specifications
Material: FC15Cr3Mo

Element
Standard %
C 3.20-3.60
Si 1.1-1.6
Mn 0.5-1.0
P <0.20
S <0.10
Cr 14-16
Mo 2.0-4.0
Ni 1.0-2.0

Grinding Area Roughness: Ra 0.2
Lapping Area Roughness: Ra 0.07
Lapping Area Flatness: 3 um

Microstructure: Martensite and Carbides
Hardness after Heat Treatment: HRC 65-72







Operating Conditions

Temperature -45 ° C to +115 ° C
Maximum Rubbing Speed Up to 150 mpm*
Internal Operating Pressure 240 to 345 KPa*



Where continuous operation is required, speeds may be limited to 107 mpm and pressure maximum to 240 KPa.

Rubber Ring Materials The right rubber ring should be chosen to meet the specific application requirements.The most common rubber ring materials are NBR and Silicone.The table listed below gives a brief comparison between available rubber rings for your reference.

SYS serves many well-known OEM enterprises at home and abroad while exporting to the aftermarket of Germany, France, Italy, Turkey, India, Australia, Brazil, Argentina, America, Canada, etc.
